Urschel 2100 Micro Cut

IMG_1531.JPG (38976 bytes)IMG_1532.JPG (39297 bytes)IMG_1533.JPG (40347 bytes)IMG_1534.JPG (35033 bytes)IMG_1535.JPG (41664 bytes)IMG_1536.JPG (41954 bytes)IMG_1537.JPG (41868 bytes)IMG_1538.JPG (42800 bytes)PB140012.JPG (167686 bytes)PB140014.JPG (167848 bytes)




Popular Applications:







Specifications
Length: . . . . . . . . . . . . . . . . . . . . . . 69.04" (1754 mm)
Width: . . . . . . . . . . . . . . . . . . . . . . *65.00" (1651 mm)
Height: . . . . . . . . . . . . . . . . . . . . . . 70.24" (1784 mm)
Net Weight: . . . . . . . . . . . . . . . . . . . 2260 lb (1025 kg)
Motors: . . . . . . . . . . . . . . . Impeller - 40 HP (30 kW) or
             . . . . . .optional 30 or 60 HP (22.4 or 44.7 kW)
             . . . . . . . . . . . . . . . Feed Screw - 5 HP (3.7 kW)
             . . . . . . . . . . . . . . . . . . Agitator - 2 HP (1.5 kW)

Applications
The Comitrol Processor Model 2100 features large hopper capacity and positive product feeding for cutting fresh and frozen tempered meat through a wide range of sizes.

The Model 2100 provides maximum utilization of all types of meat for flaked and formed products, as well as other applications including bakery rework. A wide range of cutting heads and impellers are available for tailor-made particle size requirements. The machine features continuous operation for uninterrupted production, and simplified design for easy cleanup and maintenance.
Particle sizes ranging from coarse to fine emulsions are possible. To ensure the proper combination of cutting parts, Urschel Laboratories, Inc. recommends your product be tested in one of our worldwide Product Test Facilities free-of-charge to find the most efficient solution to your size reduction needs.

Cut Products:


Spreadable Ham Product

Cartilaginous, Skin, and
Organ Material


Chicken Nuggets

Salisbury Steak


Turkey Ham using Thigh
Meat

Beef Sticks





Comitrol® Processor Model 2100
Large Hopper Capacity and Positive Product Feed
  • Recommended for flaked and formed meat applications and various other applications.
  • Agitator and variable frequency drive (VFD) screw feed assist product flow.
  • Available 30, 40, or 60 HP (22.4, 30, or 44.7 kW) impeller motor, feed screw motor of 3 or 5 HP (2.2 or 3.7 kW), and 2 HP (1.5 kW) agitator.
  • Features continuous operation for uninterrupted production and simplified design to ease cleaning and maintenance.

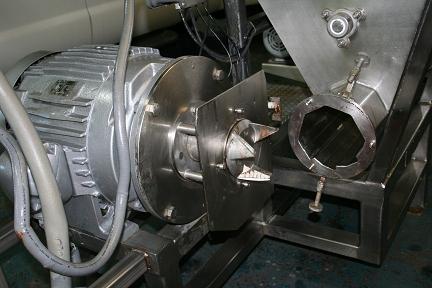

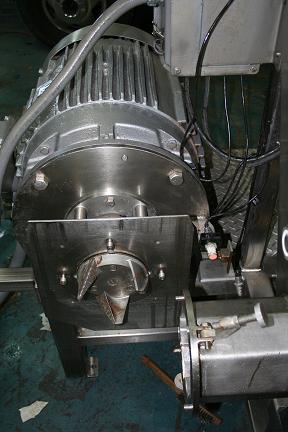

Cutting unit with cover removed.
(Shown for illustration purposes only.)
